Customizing and contract manufacturing in plastics engineering
Our focus is on the chemical industry, water treatment, and laboratory technology.
Comprehensive expertise for our customers
We employ qualified specialists in plastics and rubber technology as well as in plastic welding according to DVS 2212-1, and a certified welding supervisor according to DVS 2213. From development and 3D design to manufacturing, we offer strong solution expertise with high process reliability.
Welding types and techniques:IR, heated element butt welding, hot gas draw welding, extruder welding for PE, PP, PVC, PVDF.
Vacuum thermoforming products: We manufacture customized thermoformed products according to drawings and designs, up to a size of 1,200 x 800 mm (W x H, depth flexible). The tools are produced in our own mold-making department. If desired, we can provide everything from a single source up to the finished product, including 3D design.
Key industries:chemical industry, water treatment, medical and laboratory technology, landfill construction, ATEX applications.
MWF Technik is a certified specialist company under the German Water Resources Act (WHG).
»We apply our extensive experience in product development with a particular focus on the chemical industry, water treatment, and medical & laboratory technology.«
Dominic Völker
State-certified technician in plastics and rubber technology, development and 3D design of customer parts and MWF products.

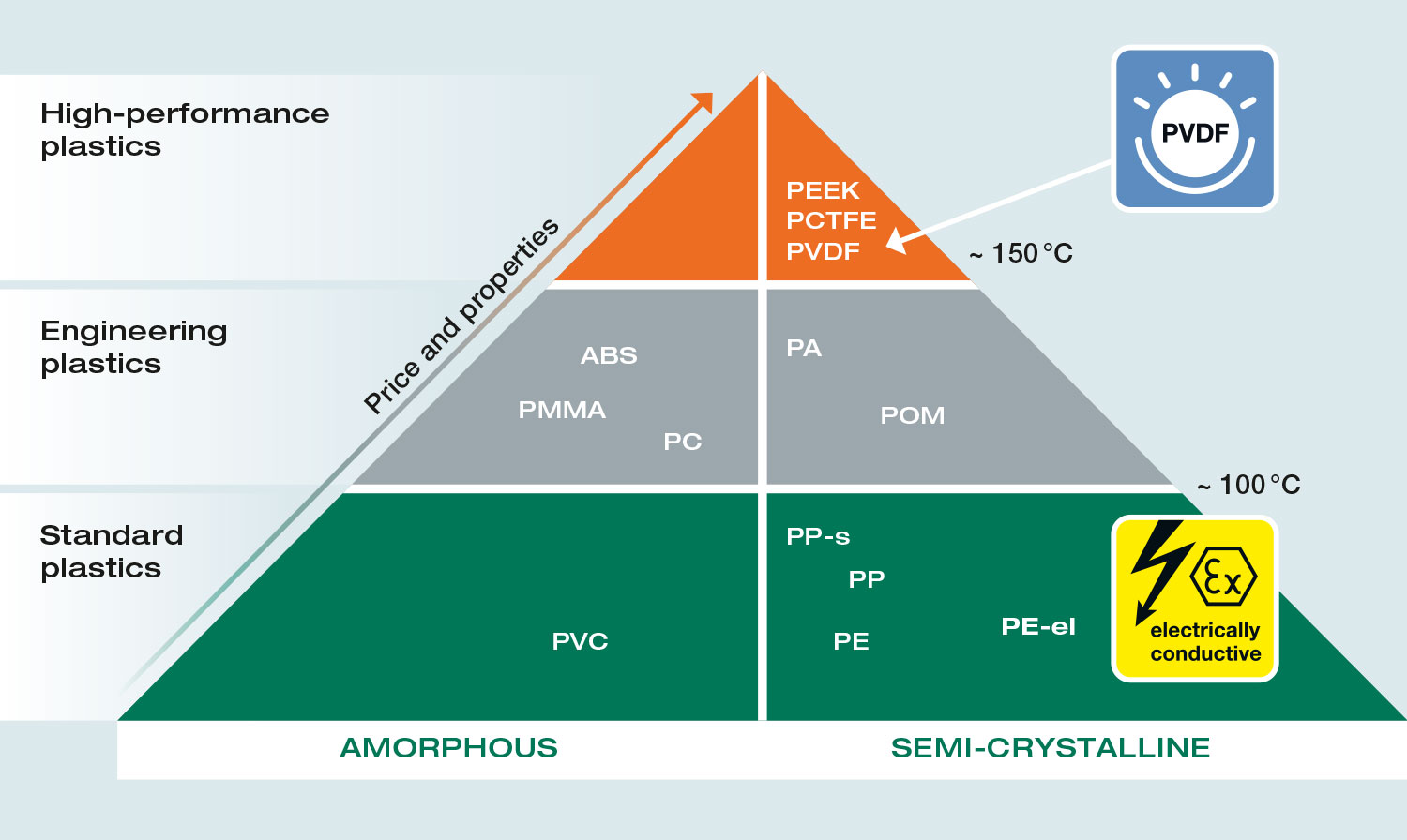

Plastics pyramid – typical MWF materials
In-house development: MWF manhole with quick-release closure – up to DN800
Walk-in inspection openings for thermoplastic tank and plant construction. Our plastics technology specialists have developed a completely new product solution in the field of manholes and brought it to series production. The innovative concept expands the range of applications and offers numerous advantages in handling.
With six materials available for the thermoformed cover and flange, we offer the widest range of materials on the market for manholes. Learn more on the product page!
Inspection glass
in PP, PVDF and PE-el
Sight glass in PP – also available in PVDF.
Sight glass in PE-el (electrically conductive).
Inspection glass in PP, PVDF and PE-el
Sight glasses for visual monitoring of flow and filling levels in pipelines:
- PP with EPDM gasket
- PVDF with FPM Viton gasket
- Operating pressure 6 bar at 20°C
- Borosilicate glass tube
Also available as electrically conductive sight glasses in PE-el:
- PE-el with EPDM gasket
- can be used in explosive atmospheres
- UV-stabilized
- electrical potential is discharged
- for increased safety requirements
Ask us about the individual options.
Immersion assembly
Left: immersion fitting with optional height-adjustable flange connection.
Right: immersion fitting disassembled with measuring electrode accessory. Standard mounting with 2 pipe clamps, flange connection optional.
Immersion assembly
pH, temperature, and conductivity measurement
- for vertical installation in tanks and systems
- PG 13.5 internal thread for measuring electrode
- available in various lengths
- incl. protective cage for glass electrode
- Standard version with 2 pipe clamps
- also available optionally with height-adjustable flange connection or compression fitting
Reducing flange in PP, PE or PE-el
Reducing flange in PP, front view.
Also available in PE – other materials on request.
Reducing flange in PE-el (electrically conductive), rear view.
Reducing flange in PP, PE or PE-el
For installation in pipelines:
- short installation length
- simple and practical installation
- shortest installation length even with large nominal diameter transitions
- for flange connections according to DIN EN ISO 15494
- Pressure rating SDR11
Also available in PE-el (electrically conductive):
Thermoformed products using the vacuum forming process
Example: vehicle made from thermoplastic sheet after thermoforming and demolding, before final processing.
Thermoformed products using the vacuum forming process
Thermoforming products for plant, tank, and equipment construction
We manufacture customized thermoforming products using the vacuum thermoforming process according to drawings and designs, up to a size of 1,200 x 800 mm (W x H, depth flexible). As a specialist in plastics and metal technology, we produce the tools in our own mold-making department. If desired, we can provide 3D design for our customers. The finished products made from thermoplastic materials are precise and dimensionally stable, offering advantages in many areas of equipment construction.
Thermoforming process at MWF Technik:
- low material consumption
- fast solutions through in-house mold making
- low tooling costs
- efficient and cost-effective, especially for small and medium series
- fiber-reinforced and textile-laminated thermoplastics can be used
- short production times with high product quality
- everything from a single source, from design to final processing and quality assurance
Ask us about the individual options.
MWF Systems product line
MWF Technik has been developing its own product line for several years, used to distribute, measure, and neutralize chemical liquids. Our products in the MWF Systems sector now include well over 2,000 items and options. These comprise the product groups compact systems (mini neutralization system), valves, tank accessories, laboratory technology (sample extraction cabinet), special connections, molded parts, and a wide range of electrically conductive versions made of PE-el and other materials.
MWF Systems includes more than 2,000 items and options
